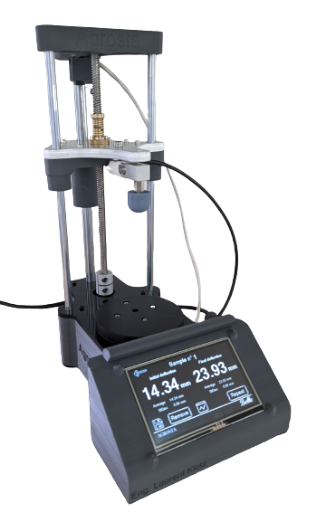

Agrosta®Belle2 texture analyzer

A versatile texture analyzer, simple and efficient, extremely accurate, working all

the time like a pack donkey - Belle2 can perform texture testing for any food,

pharmacy, any other sector, according to any standard

Machine itself with cables and softwares + Calibration stand & certificate Price includes Transport Worldwide 3900 € Set of accessories for fruits and vegetables : Table + Spring for maintaining fruits on table after measurement + tips of 8 and 11 (0.5 and 1cm2) 290 € Standard Flat table 89 € Flat or Hemispheric Tips (including Bloom) Diameters till 18 mm 82 € Diameters till 50mm 99 € Metallic needle tip (4 or 5mm) 98 € Specific diameters 115 € Spheric tip diameter 10mm 92 € Extrusion system (Holes 1.5mm, 2mm or 3mm) 129 € Tensile testing set 159 € Warner Bratzler set for shear food testing 439 € Cone 30, 45, 60 or 90° 97 € Table with metallic (small) beaker 130 € Set of 2 hooks for raft hook testing 184 € Set for Kramer-Ottawa testing with 5 blades 733 € Pestle diam 70mm 181 € Plastic blade in ceramic & resin compound 108 € Pre-configured mini PC (model can vary) 505 € Hair combing full system for cosmetics sector texture analyzis 987 € Tooth like tip 98 € Double reed for tensile testing 290 € Shaft holder with spring collets 1,2,3,4,5,6,7 mm and 2 shafts : 4 and 5mm 420 € 3 points testing system 224 €

Agrosta®Belle2 texture analyzer collects 80 pressure measurements per second. It can work according to 4

differents modes : Single pressure, Double pressure, Constant pressure and Tensile testing

The machine provides the following data for each mode :

●

SINGLE PRESSURE: Hardness, fracturability, adhesiveness, resilience.

●

DOUBLE PRESSURE: Hardness, fracturability, adhesiveness, resilience, gumminess, springiness, chewiness,

cohesiveness.

●

PULL MODE: Max pressure, fracturability.

●

CONSTANT PRESSURE: Initial deflection (once it first reaches the load), final deflection (at the end of the measurement)

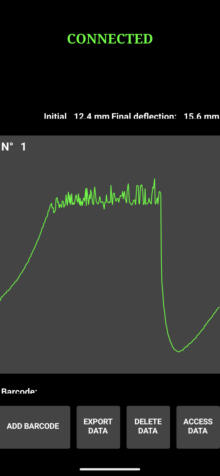

The raw data (80 measurements per second) can be connected either on a phone/tablet or on a computer, using one of the 2

apps provided with the machine - The machine and the apps display the curve of the texture profile - Using the app for android,

you can scan a barcode and associate it to the data

App for Windows :

App for Android :

Agrosta®Belle2 version 2024

Comes with a mini load cell, for higher precision and increased stroke

Body made in PLA plastic + micro carbon fiber for increased rigidity
