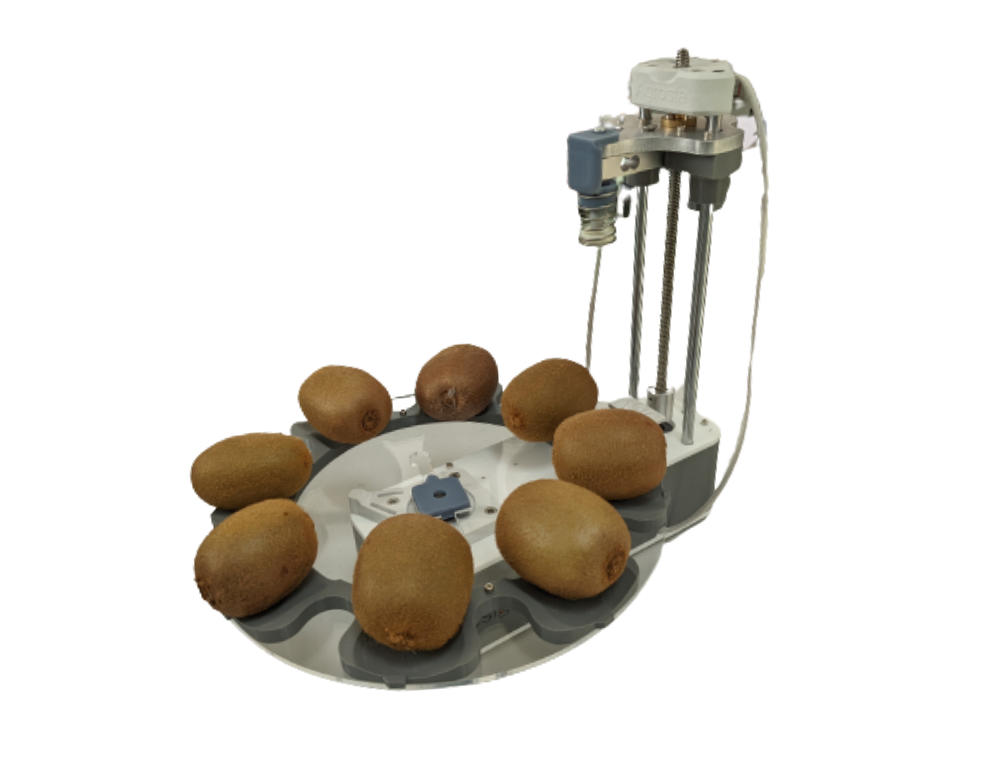

Versatile Fruit Texture Analyzer with turntable,

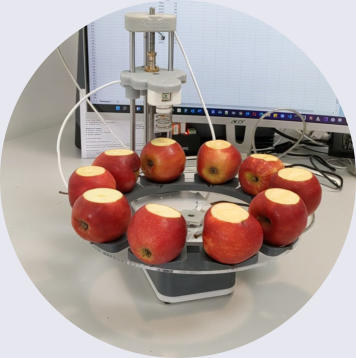

can be used as penetrometer (Apple, Pear,

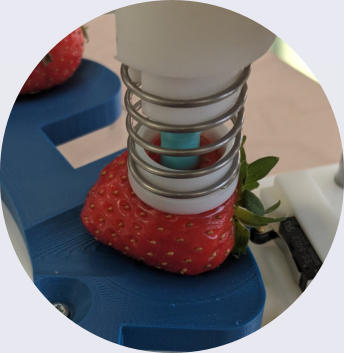

Strawberry..) or for crush resistance (Tomato,

Blueberry, Cherry, Citrus, Blackberry)

Wonderfast version : Our ultimate machine, extremely precise and

very easy to use

Wonderfast measures the firmness of any fruit or vegetable

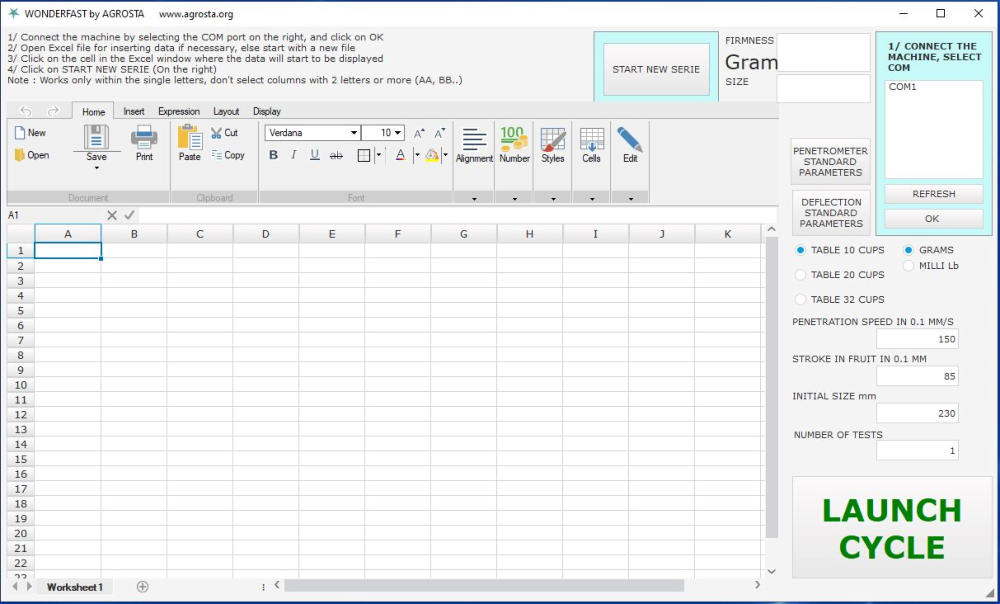

It comes with : - A software for Windows (All versions) that includes a light version of Excel (The data is directly stored under Excel format), and you can use Agrosta software in order to create, open and modify Excel files - One turntable that can be easily removed for cleaning : There are several versions of the turntable, and you can order additional tables for measuring a wide variety of fruits - The following tables are available : - 10 cups for apple, peach or orange.. - 20 cups hemispheric cups for cherry, apricot, cranberry - 20 cups with ovale cups for grapes or raspberries - 32 cups for blueberry (4 different models according to berry size range) - A double core processor (One core is managing the pressure measurements, and one core is managing the motors) - A heavy structure with high tech guides (self lubricated) and lead screw - High quality stepper motors - Laser cut reinforcements in aluminium - 1 Tip of 11, 1 tip of 8 and one flat tip of 40mm - Artificial intelligence : The biggest fruit has to be placed first on the table, then the machine manages the stroke of the carriage in order to optimize the cycle time This machine is designed for intensive use - When using for penetrometry, a spring placed on the sensor head maintains the fruit on the table during measurement (The fruit does not rise with the measuring head) : Picture on the right side -> You can define the number of fruits you want to measure, even more than the tray capacity, just replace the fruits during the cycle (You don’t need to stop) You can make continuous measurements The turntable positioning is extremely accurate, using a stepper motor (6400 steps per rotation) and a switch. each cup arrives exactly under the sensor head, and the fruits are tested in their middle. When used as penetrometer, you can remove a piece of skin on 2 opposite sides of the fruit, and return the fruits during the cycle (As shown with apples on the video)

Price :

- 4950 € including 2 turntables

- 215 € for each additional table

- 405 € for the optional colorimeter (Placed under the cups)

Express Transport included worldwide, Customs fees excluded - Machine expedited 2 weeks

after payment - Payment possible on our shop page

Alternative if you need a lot of data, for deep research, and a curve

for each fruit : Agrosta Angele

Agrosta Angele provides a curve and a lot of data for each fruit, it provides many texture parameters : Firmness, Cohesiveness, Elasticity, Brittleness, Gumminess.. It takes 80 measurements per second, so you can have up to thousands of measurements for each fruit The data flow and software of Angele are different, but the hardware is the same as Wonderfast
